LED 7 Segment display
| 7 segment led display >> THREE DIGITS >> 0.56 inch three seven segment led display
Specification
|
| Series | BL-T56A-33,BL-T56B-33 |
| Apperance: | 0.56 inch digit height(14.20mm) |
| Dimension: | 37.80*19.00mm |
| Datasheet: |  |
|
|
0.56 inch three seven segment led display
0.56 inch digit height(14.20mm)
widthheight:37.8019.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categor

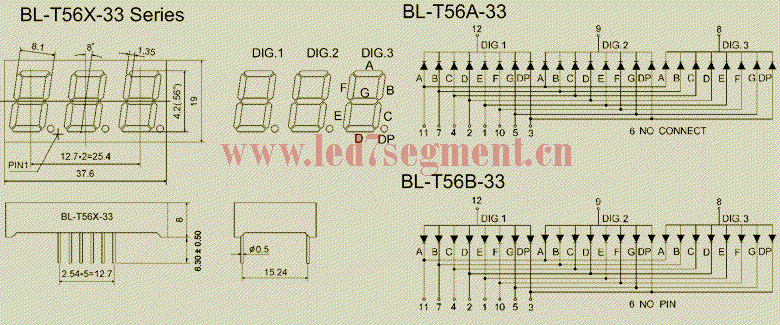

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-T56A-33H | BL-T56B-33H | Red | 700 | 2.25 | 2.6 | 12 | | BL-T56A-33UR | BL-T56B-33UR | Ultra Red | 660 | 1.85 | 2.2 | 130 | | BL-T56A-33S | BL-T56B-33S | Hi Red | 660 | 1.85 | 2.2 | 120 | | BL-T56A-33D | BL-T56B-33D | Super Red | 660 | 1.85 | 2.2 | 125 | | BL-T56A-33E | BL-T56B-33E | Orange | 635 | 2.1 | 2.5 | 65 | | BL-T56A-33UE | BL-T56B-33UE | Ultra Orange | 630 | 2.1 | 2.5 | 90 | | BL-T56A-33UY | BL-T56B-33UY | Ultra Yellow | 590 | 2.1 | 2.5 | 75 | | BL-T56A-33Y | BL-T56B-33Y | Yellow | 585 | 2.1 | 2.5 | 65 | | BL-T56A-33UG | BL-T56B-33UG | Ultra Green | 574 | 2.2 | 2.5 | 125 | | BL-T56A-33G | BL-T56B-33G | Green | 570 | 2.2 | 2.5 | 50 | | BL-T56A-33PG | BL-T56B-33PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 190 | | BL-T56A-33UB | BL-T56B-33UB | ultra Blue | 470 | 3.8 | 4.5 | 100 | | BL-T56A-33B | BL-T56B-33B | ultra Blue | 470 | 3.8 | 4.5 | 50 | | BL-T56A-33W | BL-T56B-33W | Ultra White | / | 2.7 | 4.2 | 130 | |
